Polaris Slingshot diagnostic tool by DDMWorks

Description

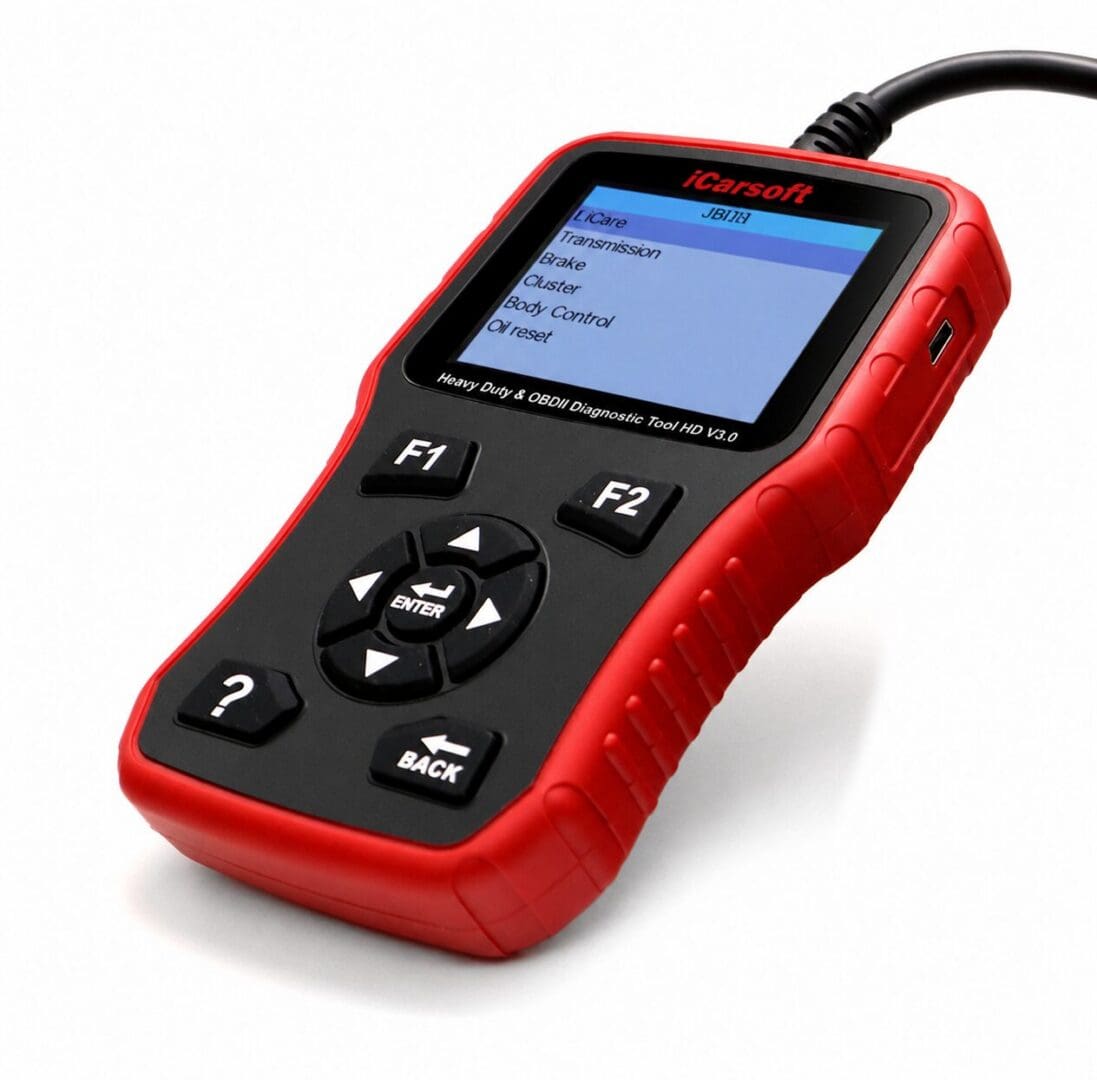

The DDMworks diagnostic tool is a great economical way to be able to read and clear codes on the Polaris Slingshot. Installation is easy, just plug into the diagnostic port under the steering column and the handheld automatically powers up. It can read and clear codes on all year Slingshots from 2015 to current year. The simple user interface is easy to navigate and allows you to also view live data displayed from the ECM. It ships in a nice carrying case for storage when not in use. As a bonus, the tool can also can be used on most other vehicles to read and clear codes along with viewing data.

List of live data displayed on 2015-2020 2.4L Ecotec engine Slingshots –

• Cruise control set speed
• Accelerator pedal position
• Intake air temp
• Manifold pressure
• Coolant temperature
• Battery Voltage
• Fuel consumption rate
• Engine RPM
• Total hours on engine
• Throttle position
• Driver demand torque
• Actual torque
• Brake switch state
• Clutch switch state
• Wheel based vehicle speed
• Brake switch status
• Clutch switch status
• Front axle speed
• Left front wheel speed
• Right front wheel speed
• Rear axle speed
• ABS operational status
• Steering wheel angle

List of live data displayed on 2020-current 2.0L Prostar engine Slingshots –

• Engine RPM
• Calculated load
• Coolant temp
• Short term fuel trims
• Long term fuel trims
• Manifold pressure
• Vehicle speed
• Intake air temperature
• Throttle position
• Oxygen sensor voltage
• Time engine has been running
• Commanded EVAP percentage
• Fuel level percentage
• Number of warm-ups since DTC (engine code)
• ECM voltage
• Absolute load
• Relative throttle position
• Relative accelerator pedal position
