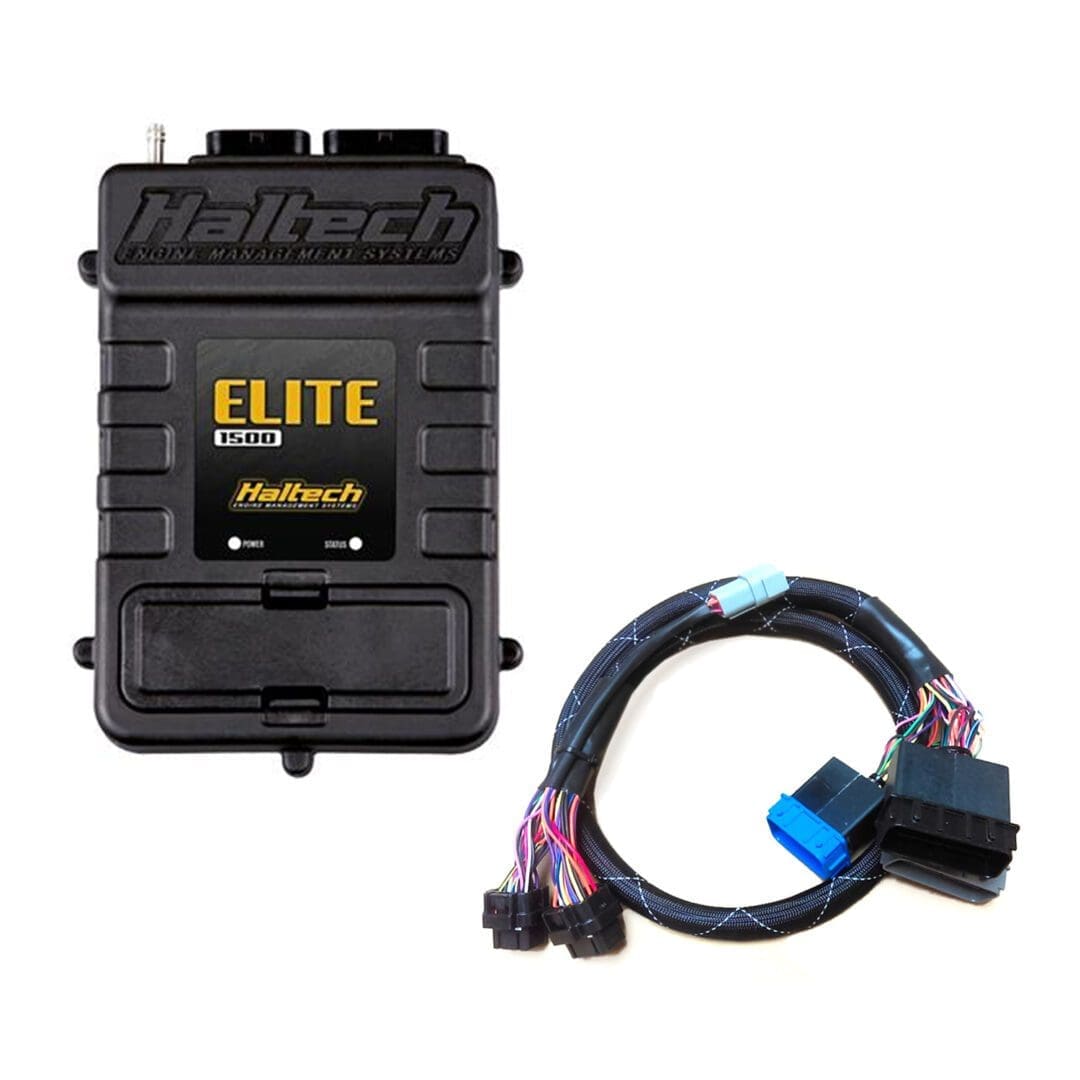

Haltech, Elite 1500 with Polaris Slingshot Plug°n°Play Adaptor

Description

The Haltech aftermarket ECU upgrade option for the Slingshot in a new Plug’n’Play Kit. Taking advantage of the Elite 1500’s advanced tuning/racing features and functions, the Slingshot Plug’n’Play ECU Kit will open up a whole world of tuning possibilities.

Additional Features:
The Elite 1500 has additional features that can be configured and connected through the provided DTM8 connector which is part of the harness. This connector has outputs and inputs that can be configured in the software for different functions. These can be, but are not limited to:

Digital Ouputs:

• Air Con Output
• Aux Fuel Pump
• Boost Control
• ECU Diagnostic Light
• Intercooler Fans
• Thermo fans

Shift Light Digital and Analogue Inputs:

• Switched Inputs
• Aux. RPM Limit
• Flex Fuel Sensor
• Vehicle/Driveshaft Speed Sensors
• Trans Brake Input Switch
• Launch Control Switch

Flat Shift Switch OEM Functionality Supported:

• Drive By Wire Throttle
• Intake Cam Solenoid Control
• Exhaust Cam Solenoid Control
• Roll Over Sensor
• Knock Sensor
• Thermofan Relay
• Clutch Switch
• O2 Heater
• MAP Sensor
• Engine Control Relay
• Coolant Temperature Sensor
• Air Temperature Sensor
• Fuel Pump
• ABS (via CAN)
• Power Steering

Factory Gauge Cluster options supported:

• Check Engine Light
• Speedo
• Tacho

IMPORTANT EMISSIONS NOTICE: In many states, it is unlawful to tamper with your vehicle’s emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.
