DDMWorks Oil Cooler and Filter Relocation kit for Polaris Slingshot

Description

The DDMWorks Oil cooler and filter relocation kit is a great addition for those that drive their Slingshot hard or have added a Supercharger or Turbo. We have specifically designed this kit to be a plug and play install on the Polaris Slingshot to give protection from high oil temperatures found in boosted or hard driven Slingshots.

When you drive your Slingshot hard, the oil temperatures will start to climb and if you have added a Supercharger or Turbo those temperatures only get hotter. As the engine oil starts to heat up it will start to breakdown and not provide as much protection to the engine and can start to lead to failures. Our kit is designed to fight higher temperatures in a couple of ways.

The unique oil filter we designed fits in the place of the stock oil filter and cap allows large -10AN hose to be routed to an external oil cooler and filter. The oil cooler is mounted with a stainless steel bracket on the drivers side of the engine bay that allows air exiting the engine bay to flow through the cooler to take away heat from the oil. Then the oil is sent to a larger oversized oil filter that provides more surface area than the stock filter, providing longer filter life and less pressure loss across the filter than stock.

All of the extra parts in the system also increase the oil capacity of the oil system by an amazing 2 quarts. With the larger amount of oil in the system, it takes longer for the oil to increase its temperature, providing more protection.

If you drive your Slingshot hard, this kit is a simple plug and play solution to give your engine protection from high oil temperatures. This kit uses larger, common oil filter with 3/4″ x 16 thread pitch, we prefer K&N HP-2004, 2007 Dodge Ram 4.7L V8 (not included in kit).

The kit it comes with:

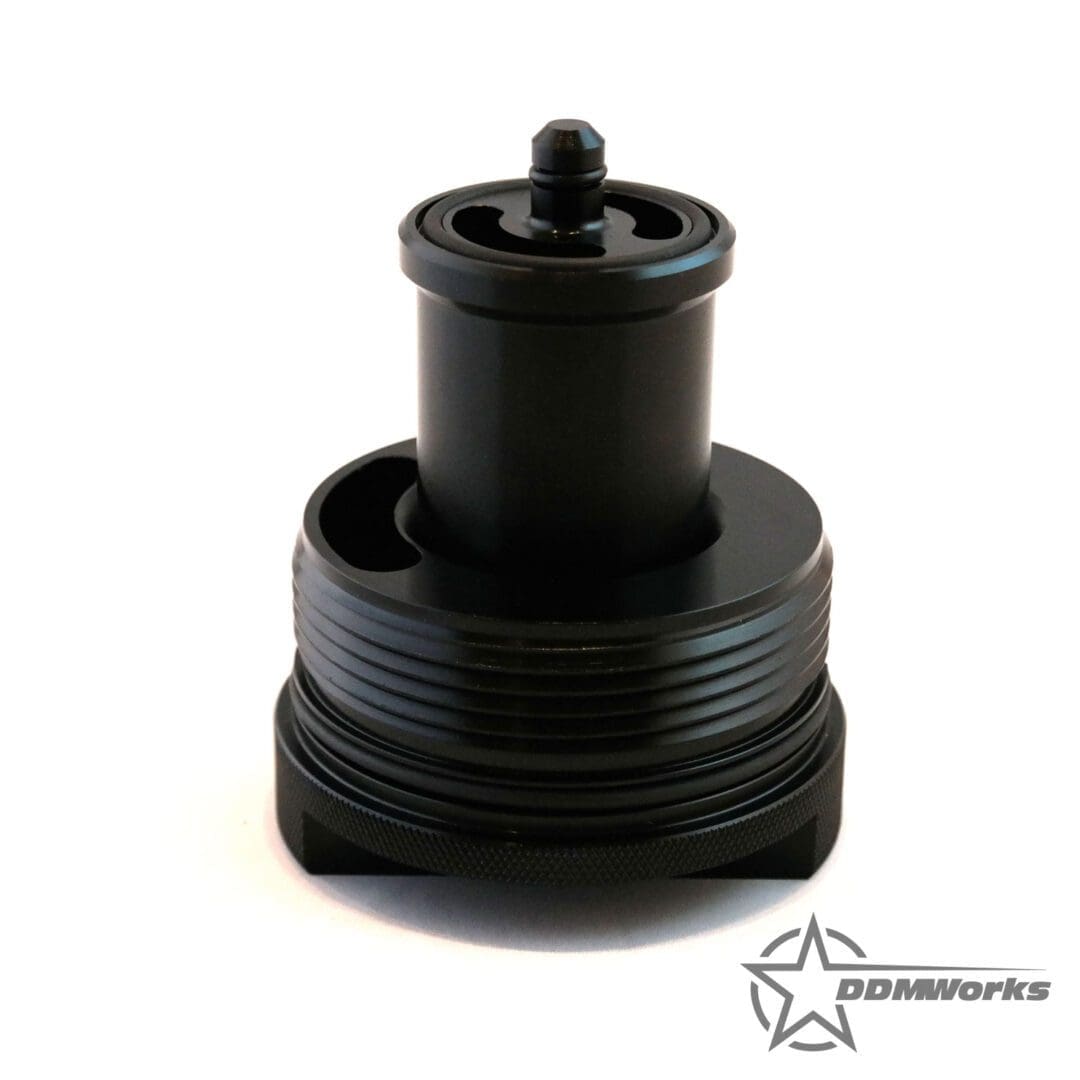

• DDMWorks Billet Oil Filter Adapter

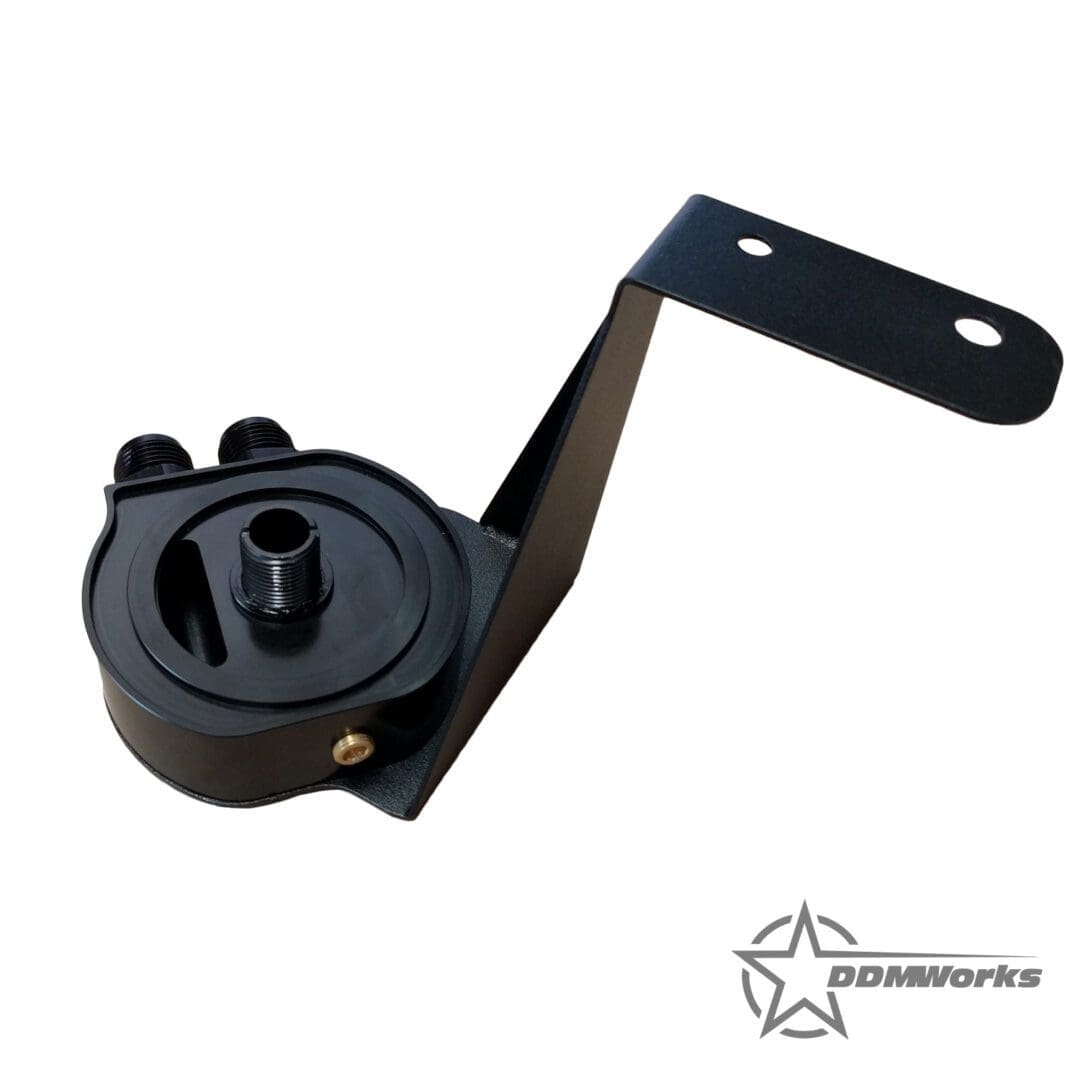

• DDMWorks Billet Filter remote base with threaded adapter
• Stainless steel mounting bracket for filter remote with black powder coated finish

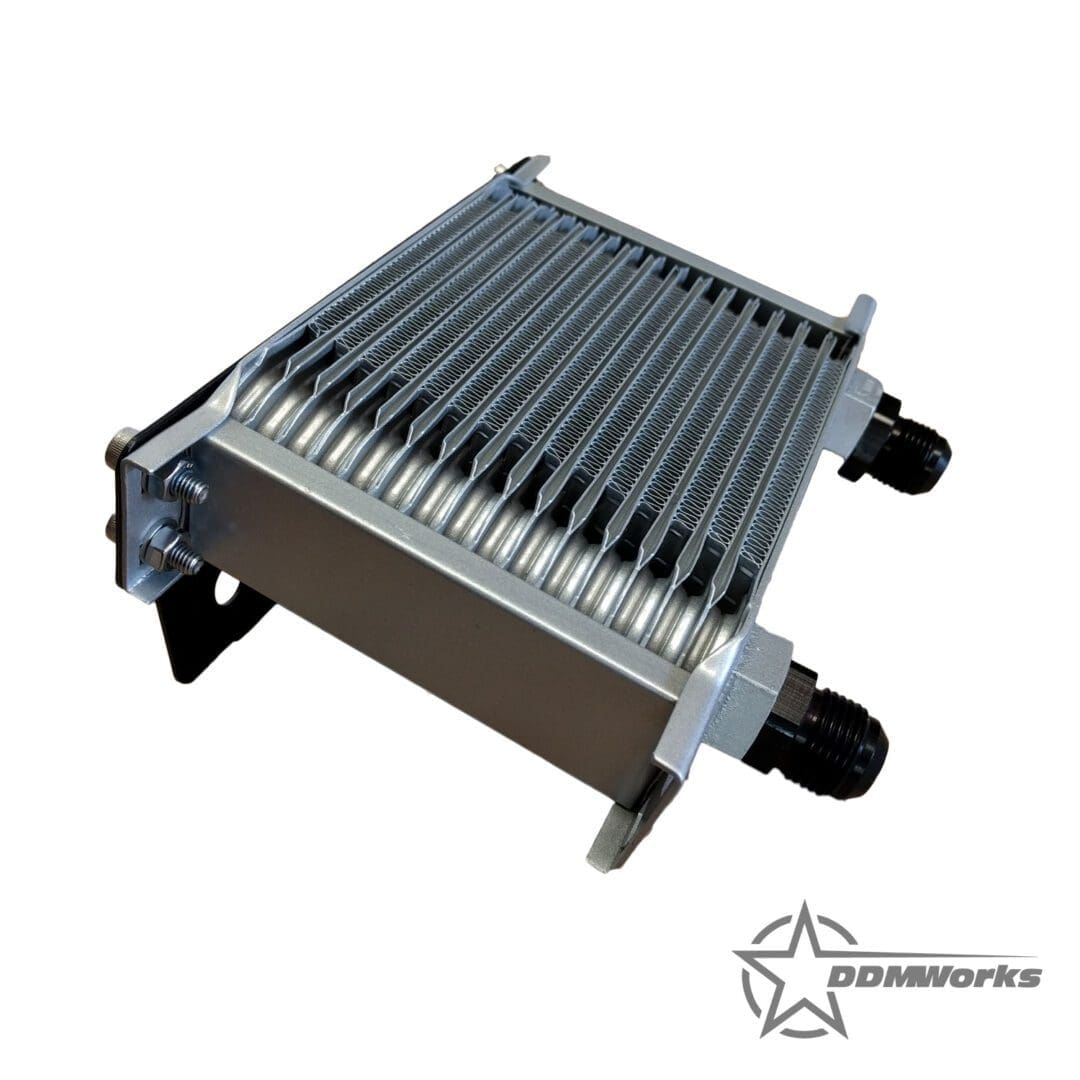

• High Performance Oil Cooler
• Stainless steel Oil cooler mount with black powder coated finish
• 10 AN Braided Stainless Steel oil filter line
• 10 AN Braided Stainless Steel oil cooler line
• 10 AN Braided Stainless Steel adapter line
• Stainless steel hardware required for installation
• Full Color instructions

FILTER NOT INCLUDED: Kit designed for oil filter with 3/4″ x 16 thread pitch. (We prefer K&N part# HP-2004, 3/4″ x 16 thread pitch for 2007 Dodge Ram 4.7L V8)
